Renogy Rover Li 40 Amp MPPT Solar Charge Controller
- Monitoring with Renogy ONE Core: Add Renogy ONE Core to achieve smart energy monitoring with intuitive visuals and real-time data. It is an upgraded streamlined energy with our 3-in-1 smart panel.
- Innovative MPPT Design: Die-cast Aluminum design ensuring excellent heat dissipation and Renogy Maximum Power Point Tracking technology with a high tracking efficiency of up to 99% and peak conversion efficiency of 98%. It is the best charging solution even in cloudy environments where the max power point of the solar panels will fluctuate all day.
- 12V/24V Automatically Detect: Automatically detects 12V or 24V DC system voltages (for Non-Lithium battery types), and the LCD screen and multiple LED indicators display the solar charging and battery operation information, customizable parameters, and error codes.
- Full System Protection: Meant to safeguard your system, the self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, and reverse current.
- 4-Stage Safely Charging: Features 4-stage charging (Bulk, Absorption, Float, and Equalization) of Lead Acid Batteries and 2-stage charging (Bulk and Absorption) for Lithium batteries as well as Lithium Reactivation.
- Diverse Load Control: Connect DC appliances directly to the optional Load Terminals and monitor consumption or set up timer controls directly from the controller.
- Remote Monitoring: The RS232 communication port allows the Renogy Rover charge controller to communicate with the DC Home app and Renogy ONE M1 via the Renogy BT-1 Bluetooth module (highly recommend to add-on ). This will enable you to monitor the status and productivity of your panels on the go.
The Renogy 40A Rover MPPT Charge Controller is the most efficient type of charge controller. With up to 99% tracking efficiency, the Rover ensures maximum power point solar charging that gets more energy to your battery bank. Capable of automatically detecting 12V/24V lead acid battery systems, this crucial component is preset to also work with Gel, Flooded (wet cell), and Sealed batteries（manual setting is required for 24V Lithium battery）. When paired with the Renogy BT-1 Module and DC Home app you can view system performance in real-time and make parameter changes without having to get up!
Specifications:
RENOGY ROVER 40 AMP MPPT SOLAR CHARGE CONTROLLER (RNG-CTRL-RVR40)
Electrical Parameters
- Nominal System Voltage: 12/24V Auto-Detect
- Rated Charge Current: 40A
- Max. PV Input Voltage: 95 VDC
- Max. PV Input Power: 12V/520W, 24V/1040W
- Power Consumption: ＜100mA/12V; ＜58mA/24V
- Max Battery Voltage: 32V
- Ground Type: Negative
- Electrical Protection: Overcharging, over-discharging, overload, and short circuit.
- Capable of charging over-discharged lithium batteries.
Environmental Data:
- Protection Level: IP32
- Operating Temperature Range: -35°C to 45°C; -31°F to 113°F
- Storage Temperature Range: -35°C to 75°C; -31°F to 167°F
- Operating / Storage Humidity: ≤ 90%, No Condensation
- Temperature Compensation: -3mV/°C/2V
Mechanical Specifications:

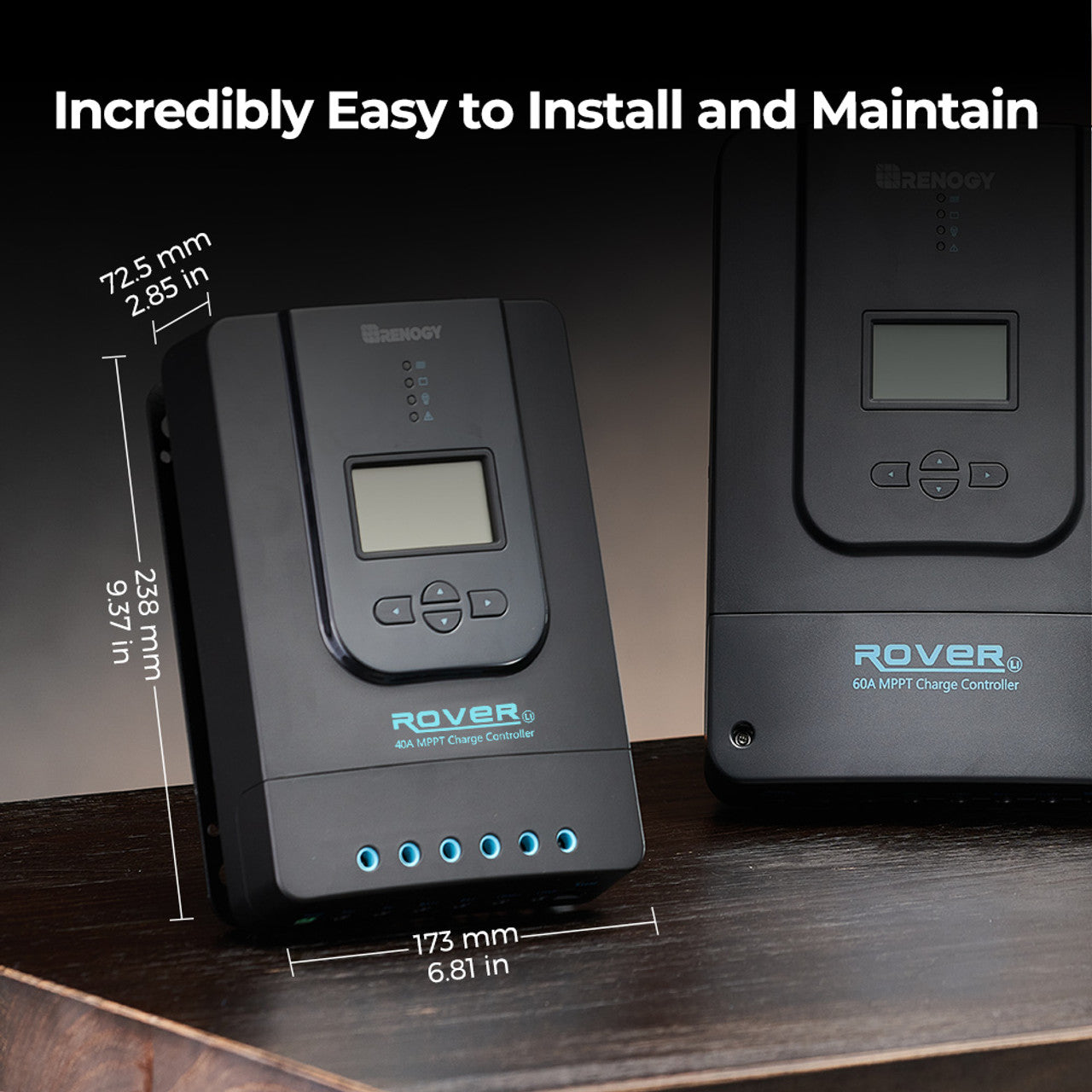

- Dimensions: 238 x 172 x 77 mm;9.38 x 6.78 x 3.05 in
- Weight: 2.0kg / 4.41 lb
- Max. Terminals Size: 8 AWG 10mm2
Accessories:
- Temperature Sensor: 9.8ft cable length
Certifications:
- CE: YES
- FCC Class B Part 15 Compliant: YES
Warranty:
- Material and workmanship warranty: 2 Year
RENOGY BT-1 BLUETOOTH MODULE (RCM-BT1)
Compatibility:
- Compatible PWM Charge Controller: RNG-CTRL-WND10/RNG-CTRL-WND30-LI/RNG-CTRL-ADV30-LICompatible MPPT Charge Controller: RNG-CTRL-RVR20/RNG-CTRL-RVR30/RNG-CTRL-RVR40/ RNG-CTRL-RVR60S/RNG-CTRL-RVR100
- Compatible App: Renogy DC Home App available in both the App Store and Google Play
Operation Specifications:
- Communication Protocol: RS232
- Port Type: RJ12
- Input Voltage : 5V
- Protection Grade: IP54
- Standby Power Consumption: 0.04W
- Operating Power Consumption: 0.05W
- Serial Baud Rate: Fixed Baud Rate 9600bps
Mechanical Specifications:
- Communication Range: ≤82ft (25m)
- Cable Length: 16.4 ft (5.00m )
- Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
- Weights: 4.58oz (130g )
- Operation Temperature: -4°F to 185°F ('-20℃~85℃)
Certifications:
- FCC Class B Part 15 Compliant: YES
Warranty:
- Material and workmanship warranty: 2 Year
Package Includes:
1 x Rover Li 40 Amp MPPT Charge Controller
1 x Remote Temperature Sensor
4 x Mounting Brackets
1 x Options: BT-1 Bluetooth Module
