ACOPOWER Flexible RV Solar System

ACOPOWER Flexible RV Solar System

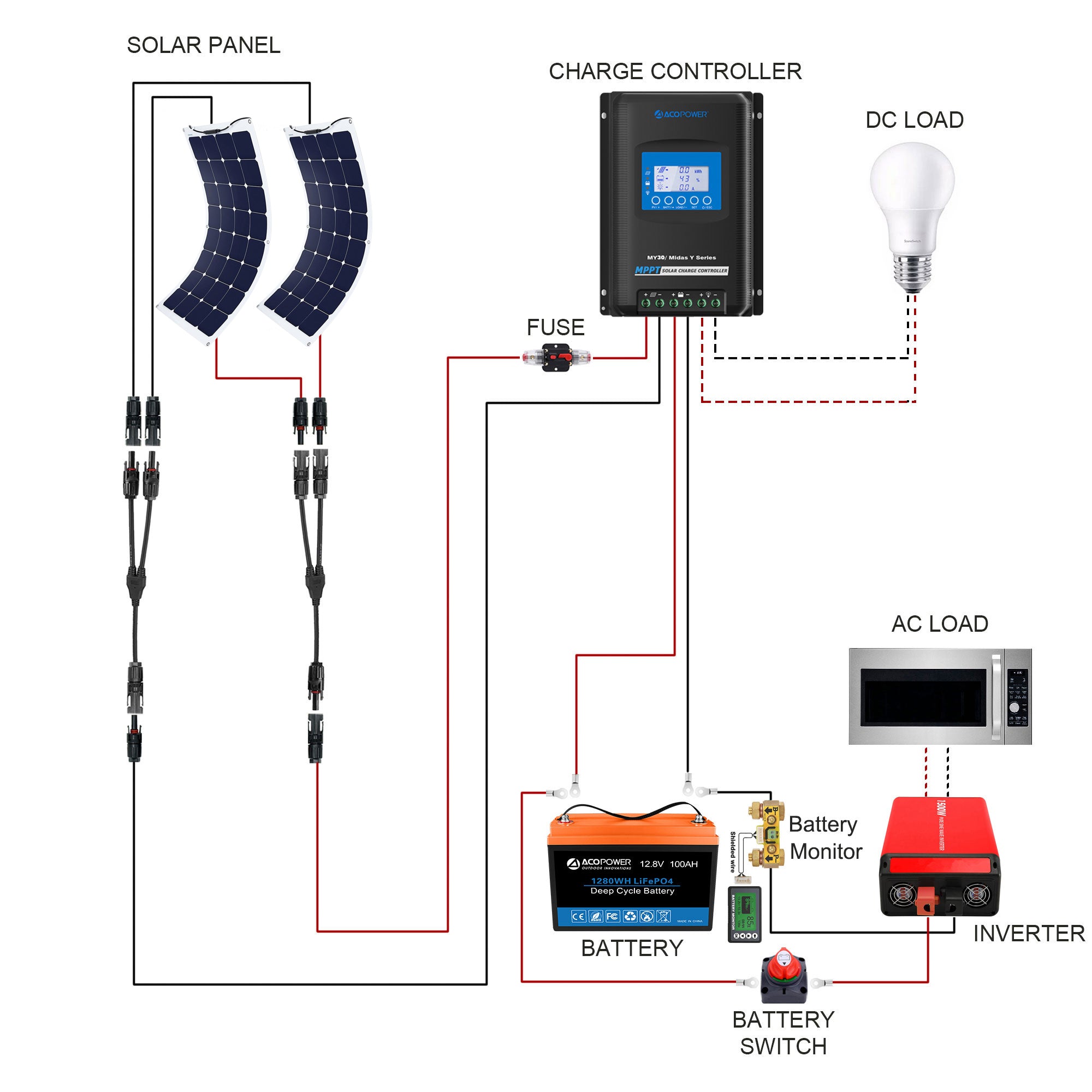

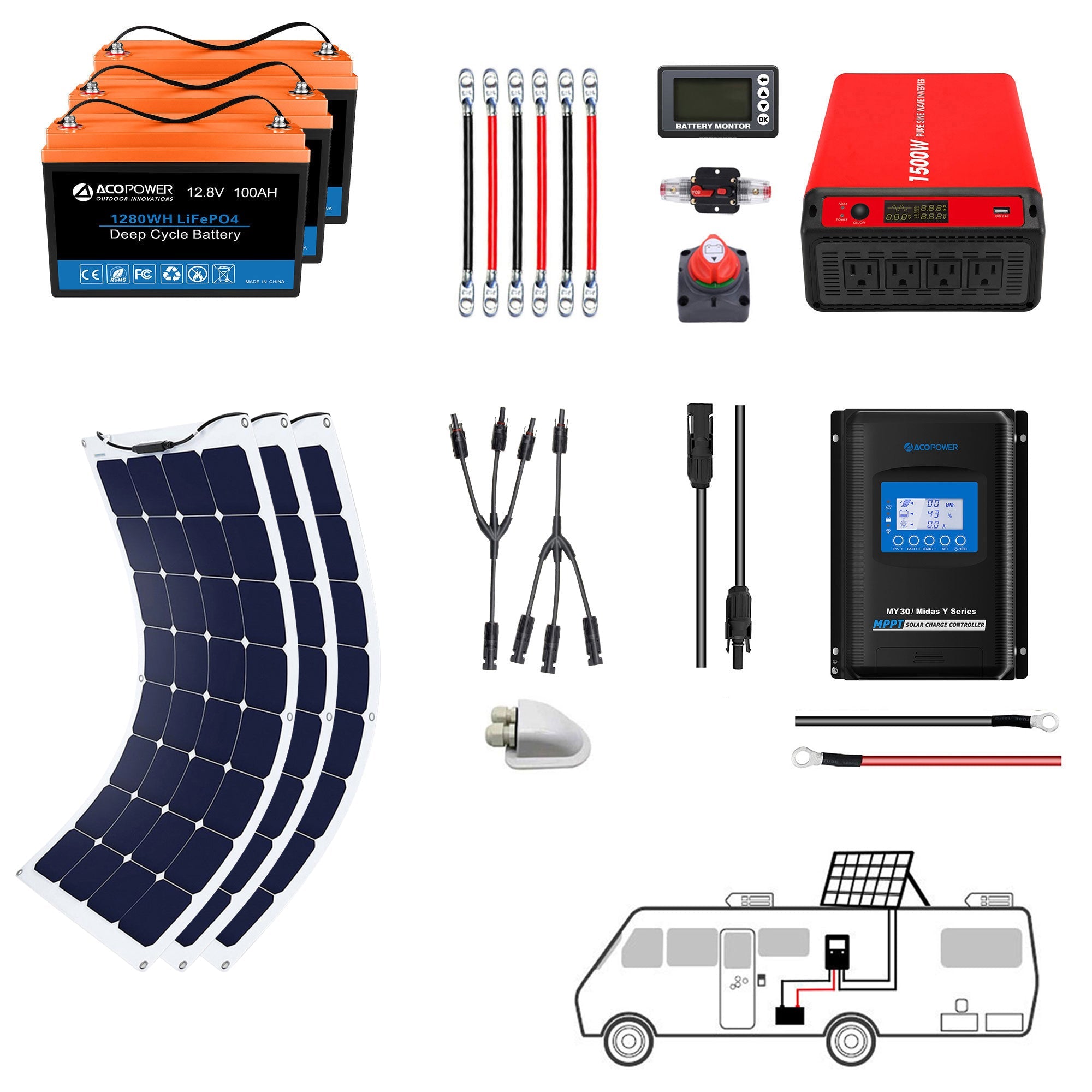

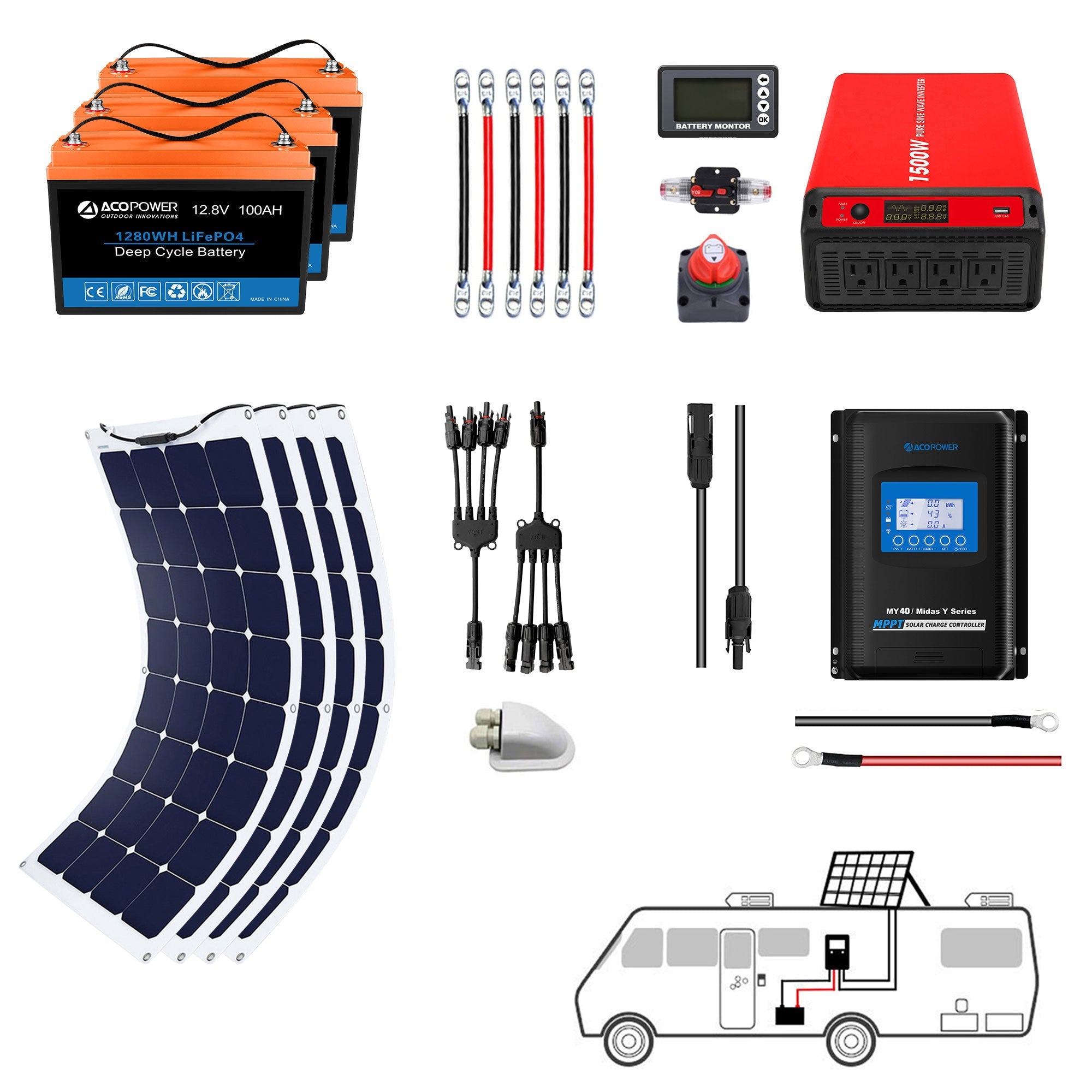

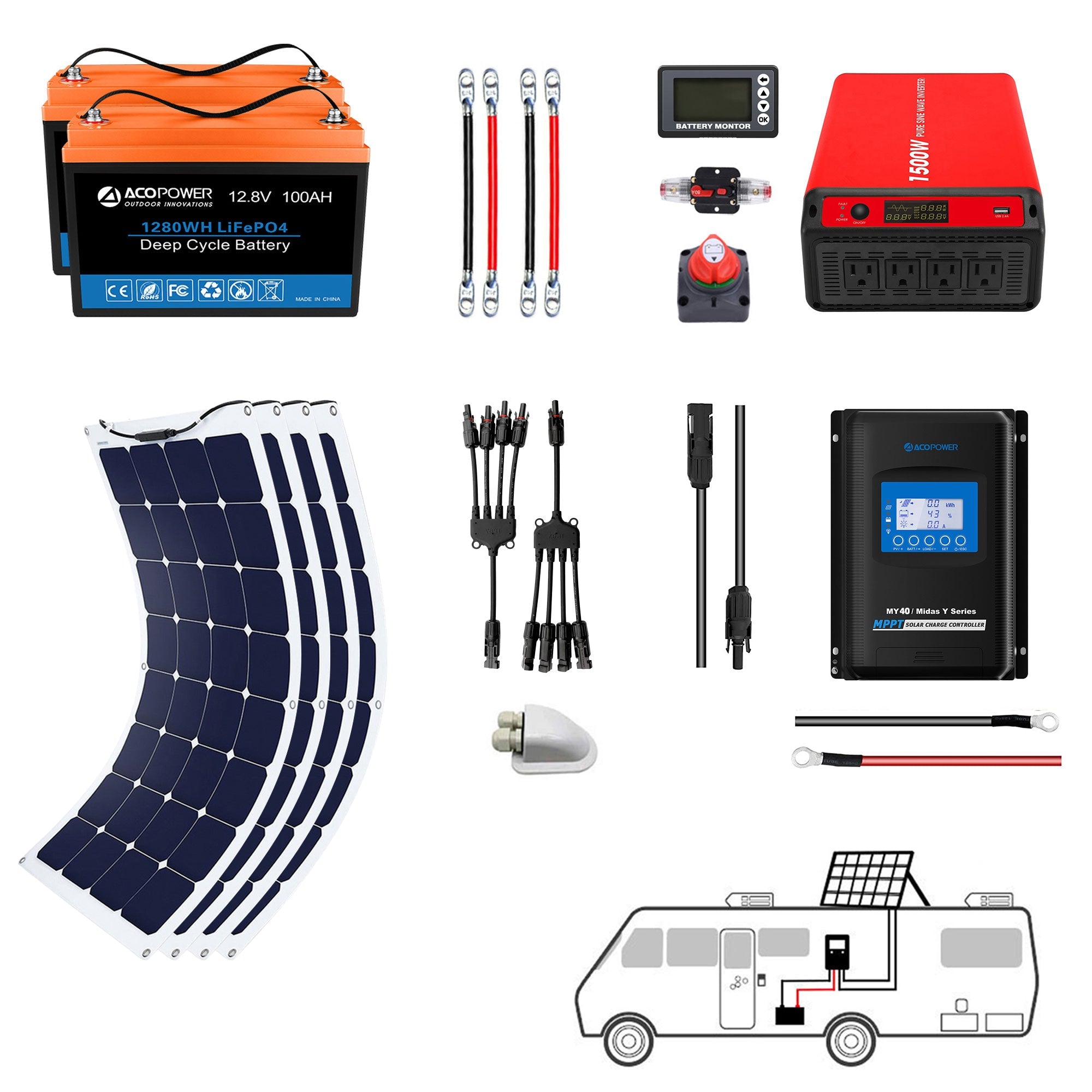

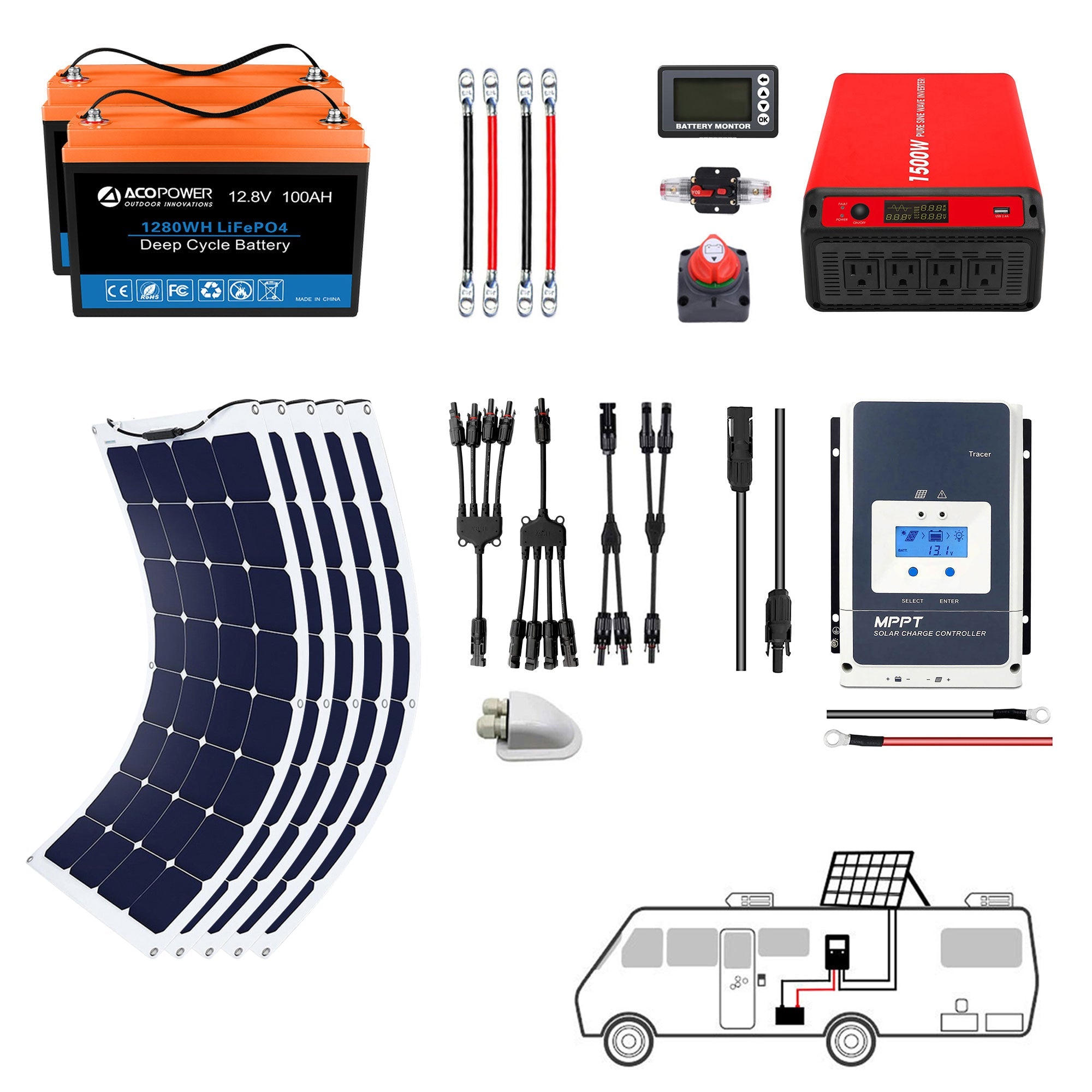

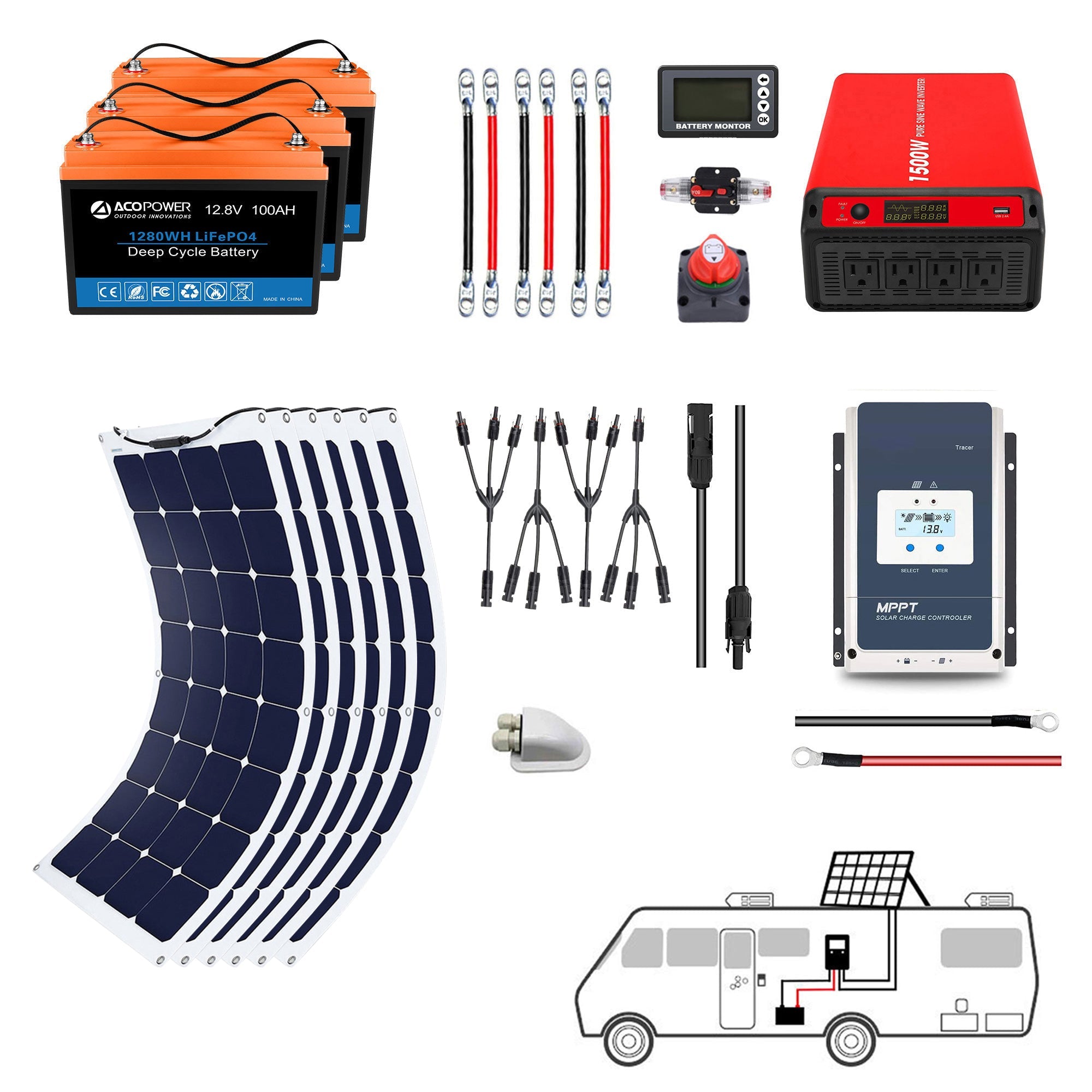

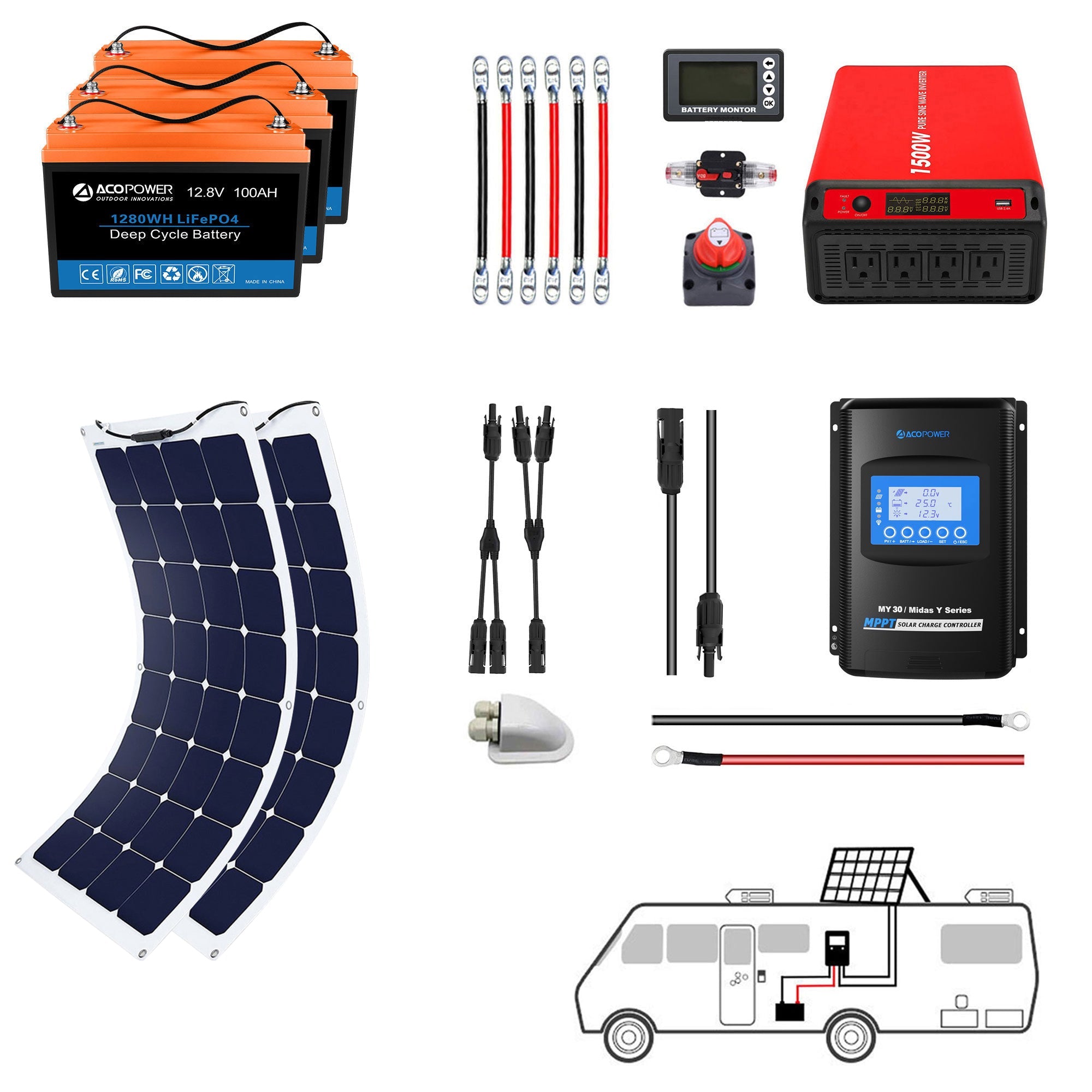

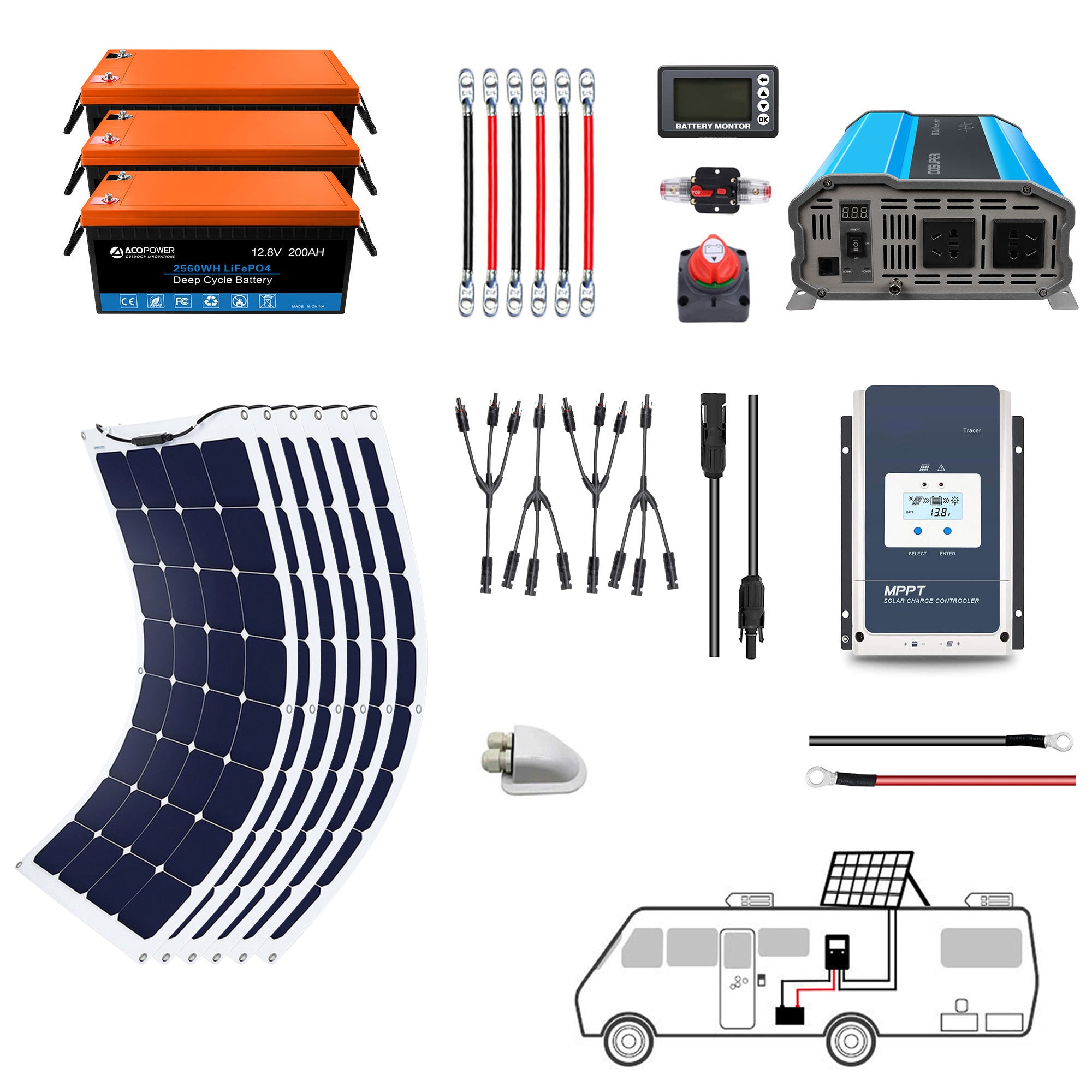

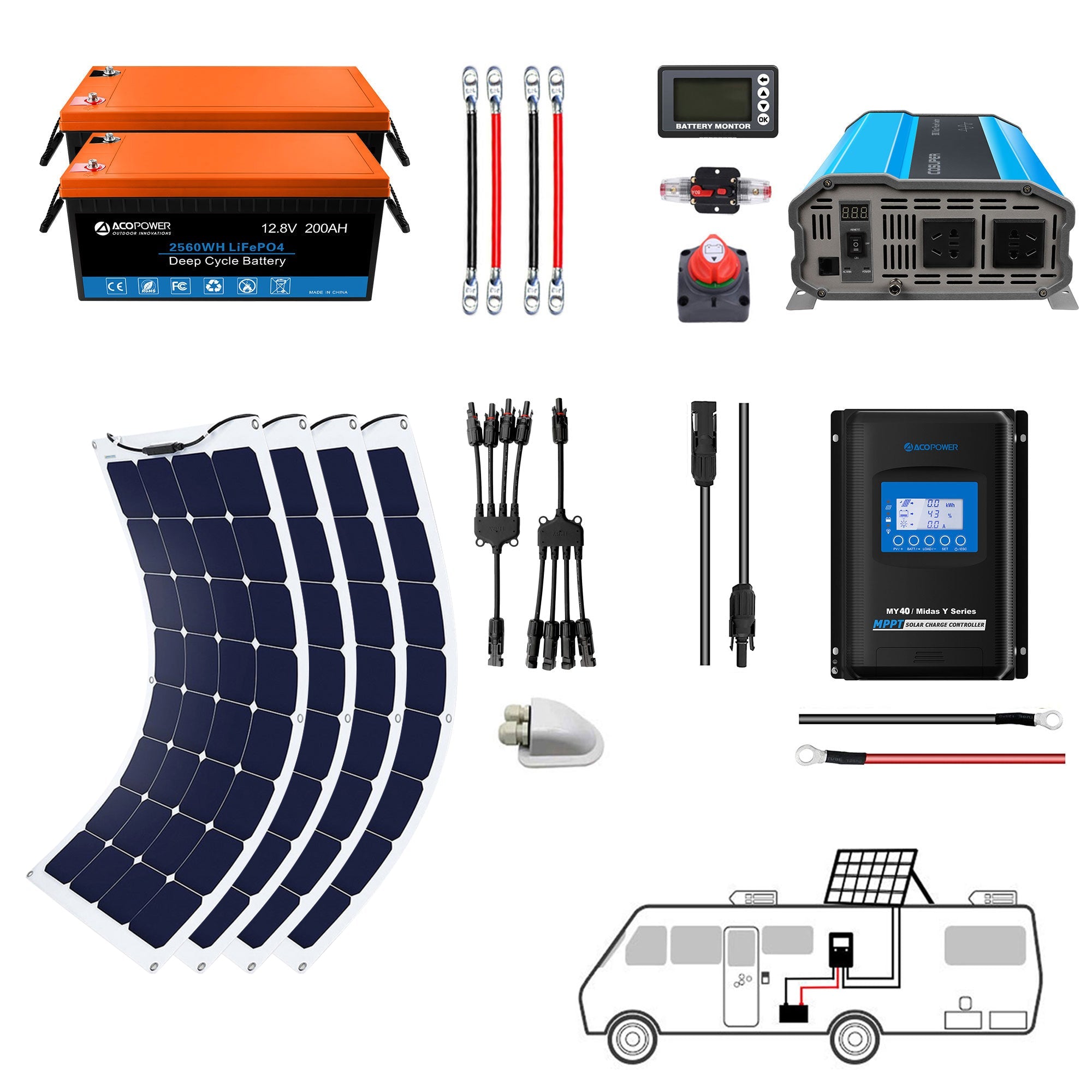

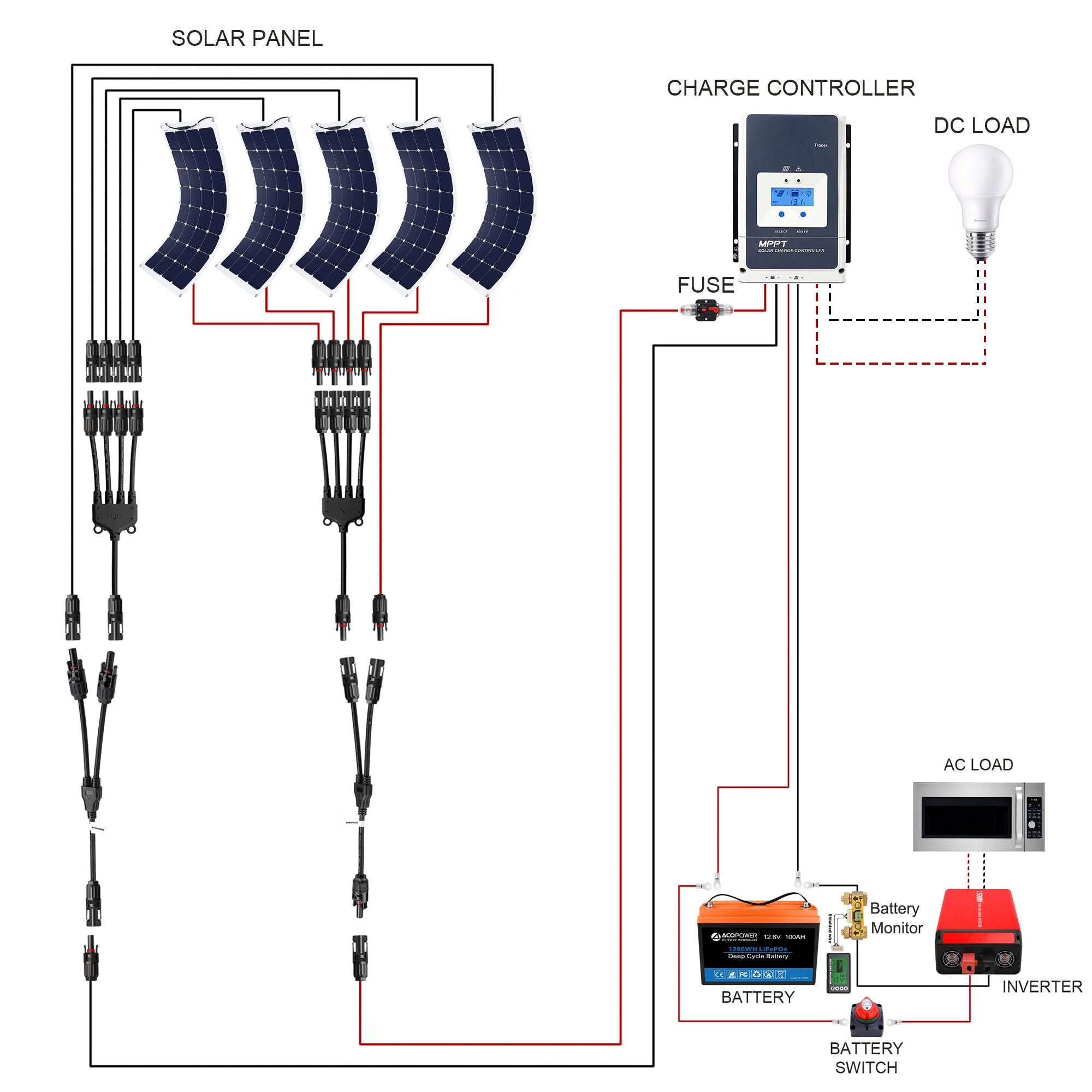

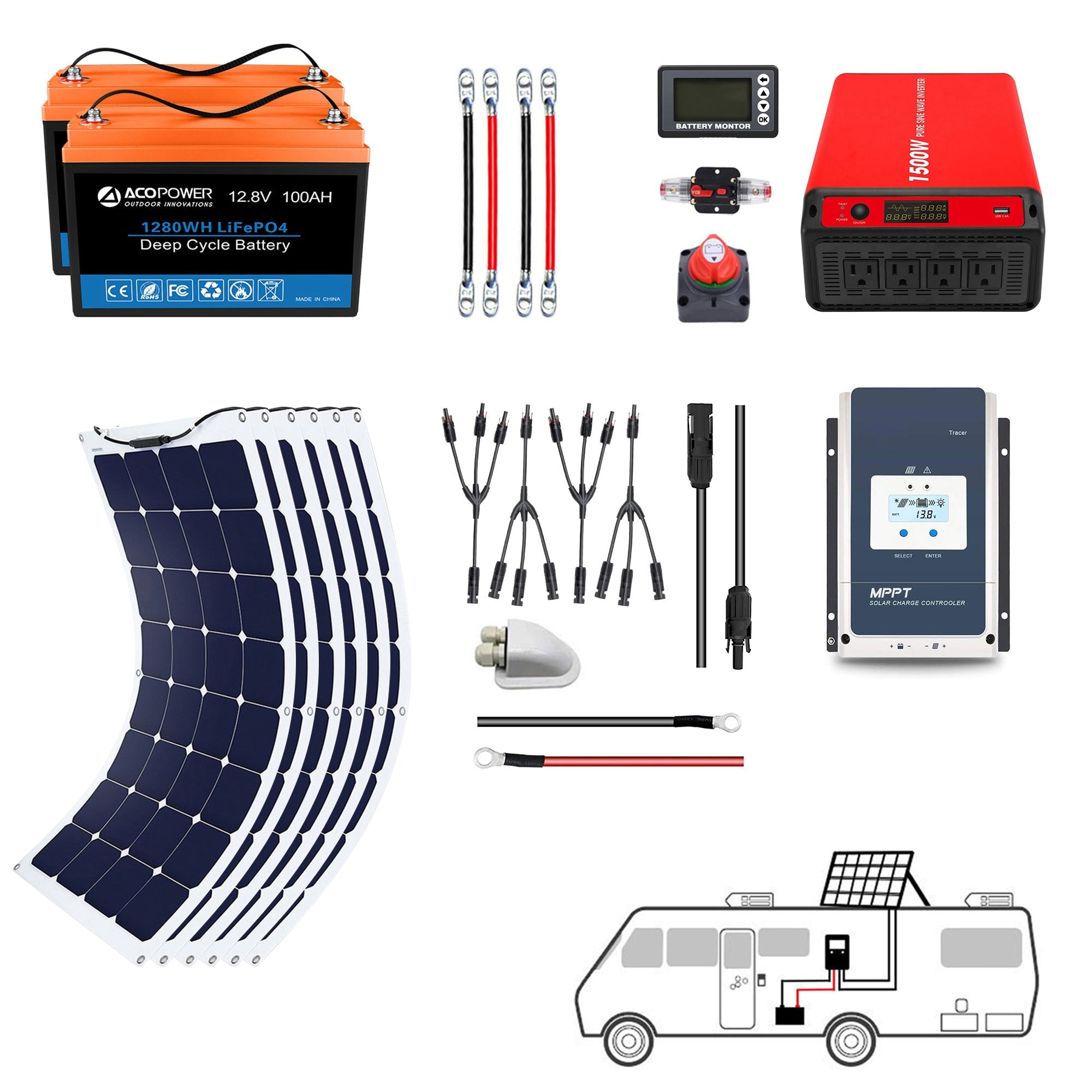

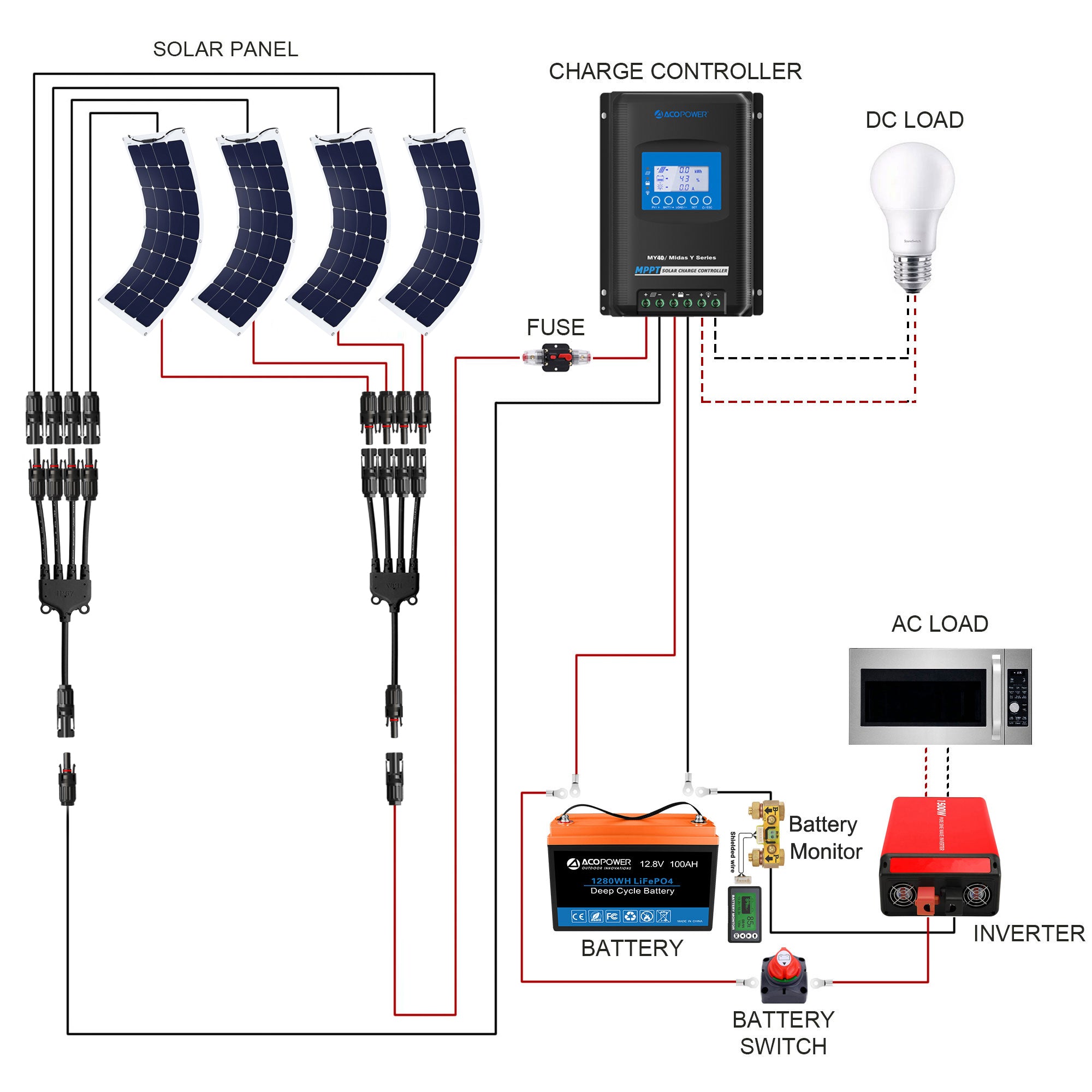

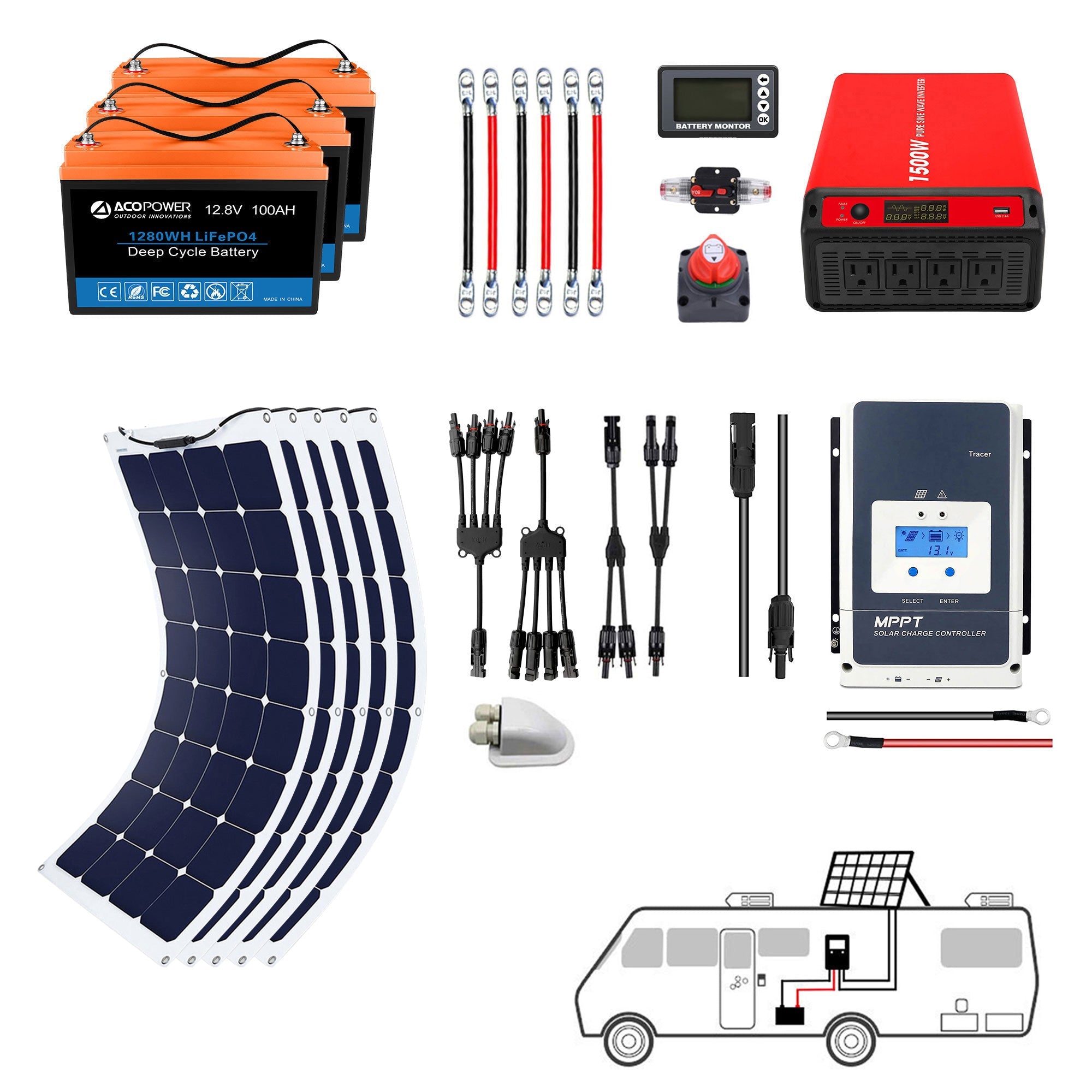

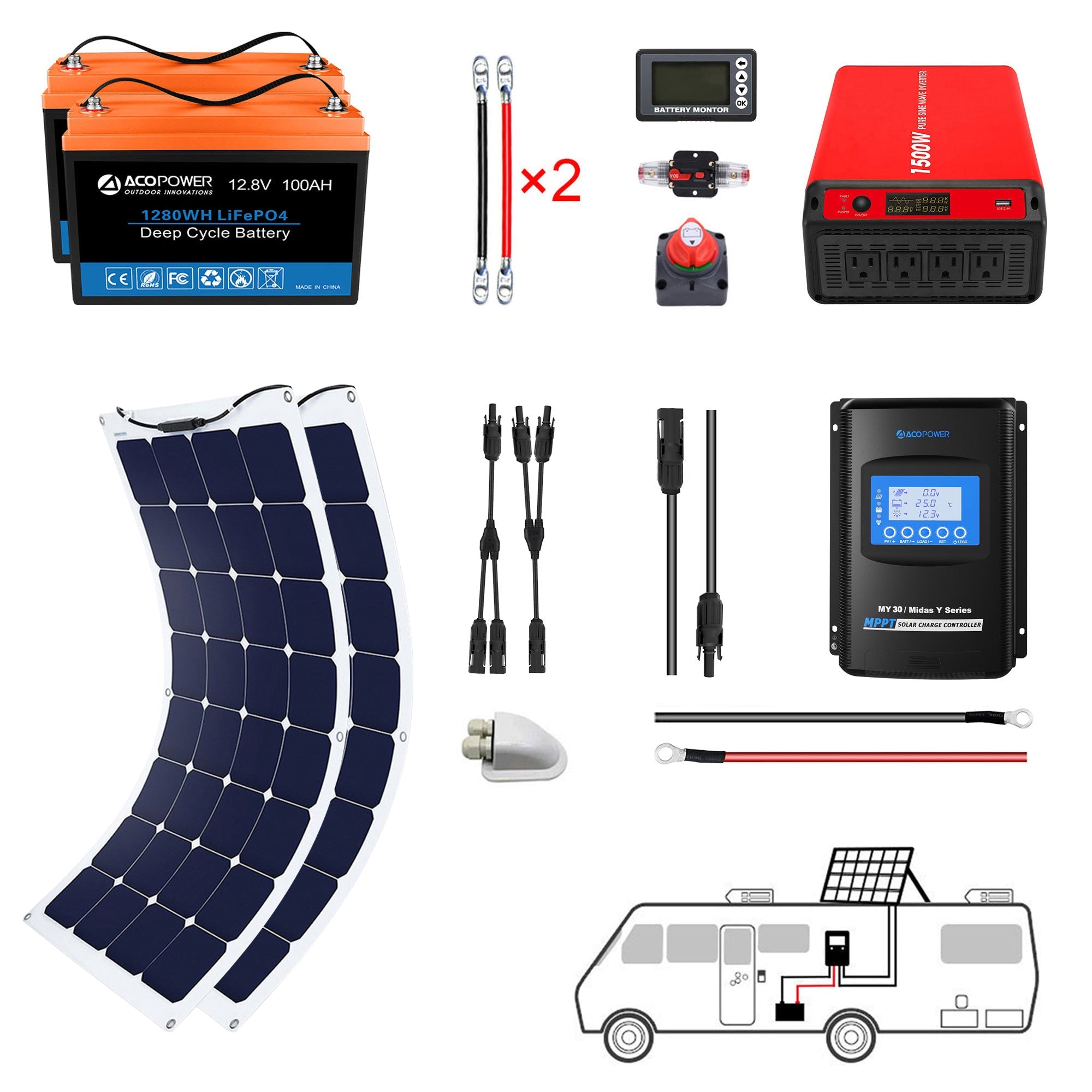

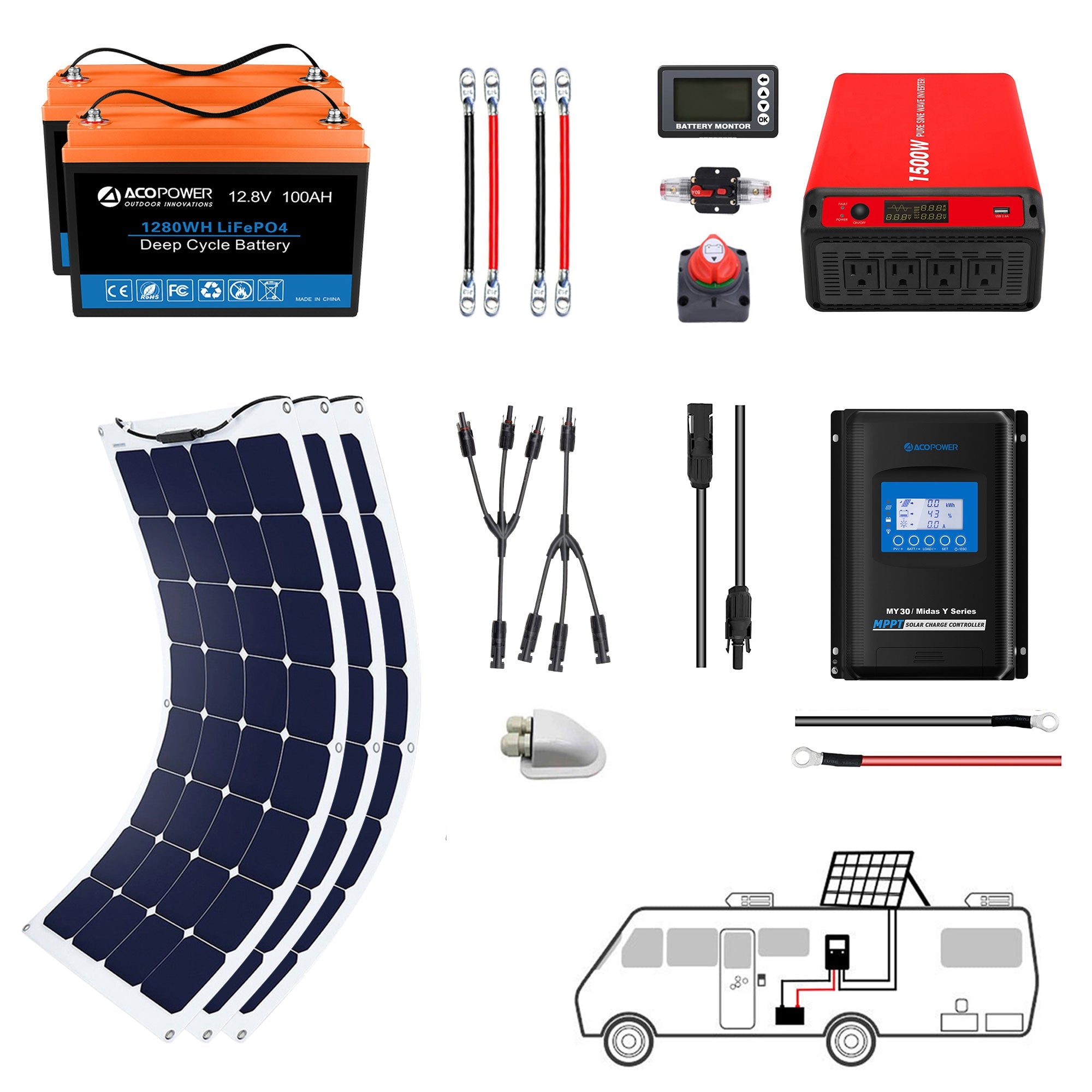

ACOPOWER 330 Watt Flexible RV Solar system comes with everything you need to start Producing Free, Clean Power from the Sun! Perfect for RV's, Boats, Cabins and Back-up Power! Solar Powered

Specification:

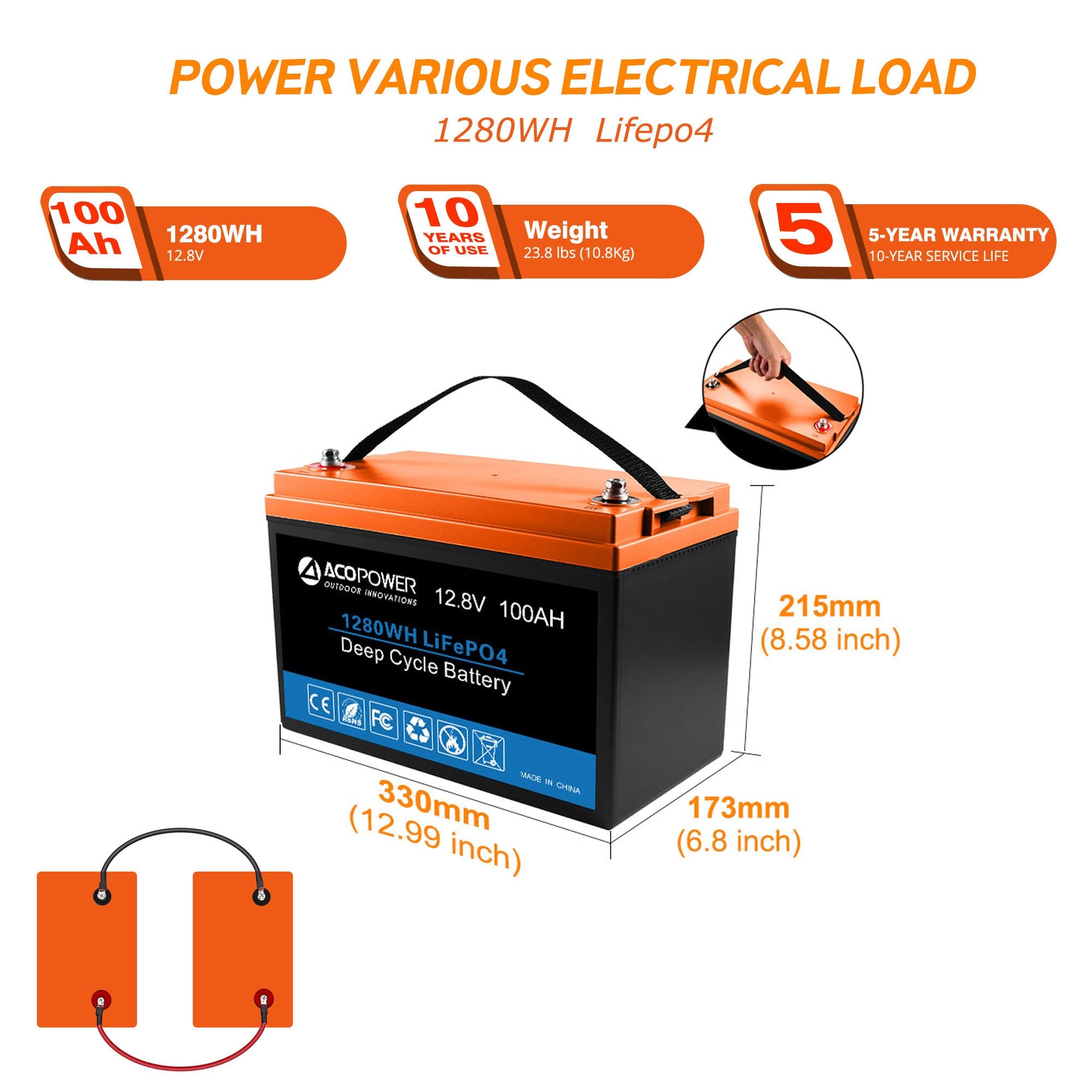

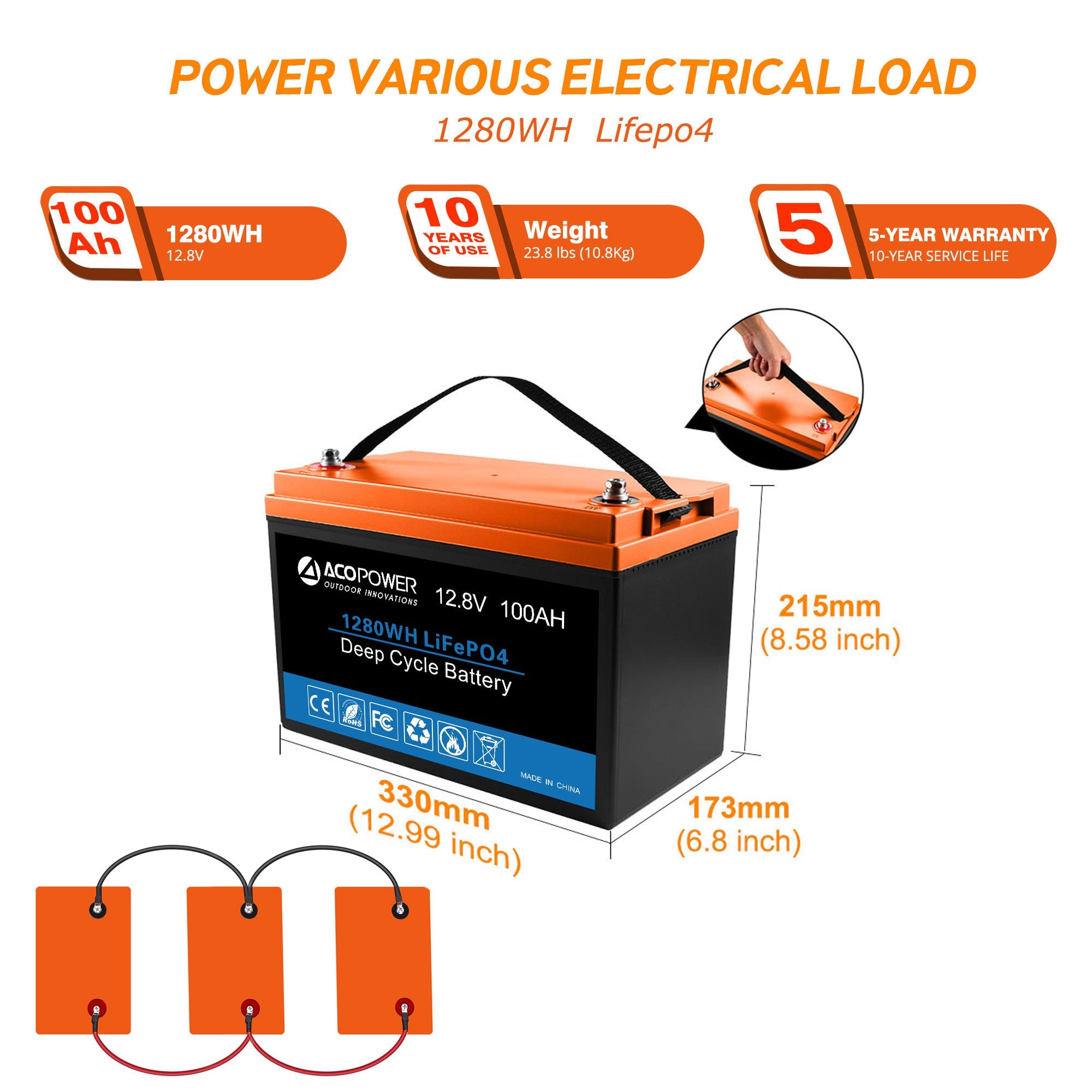

12V 100Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage 12.8V
Charge voltage: 14.2 - 14.6V
Battery Capacity:1280WH
Depth of Discharge (DoD): 100%
Standard charge current: 20A
Max continuous charge current: 50A
Max continuous discharge current: 100A
dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
Approx. Weight: 23.8lb

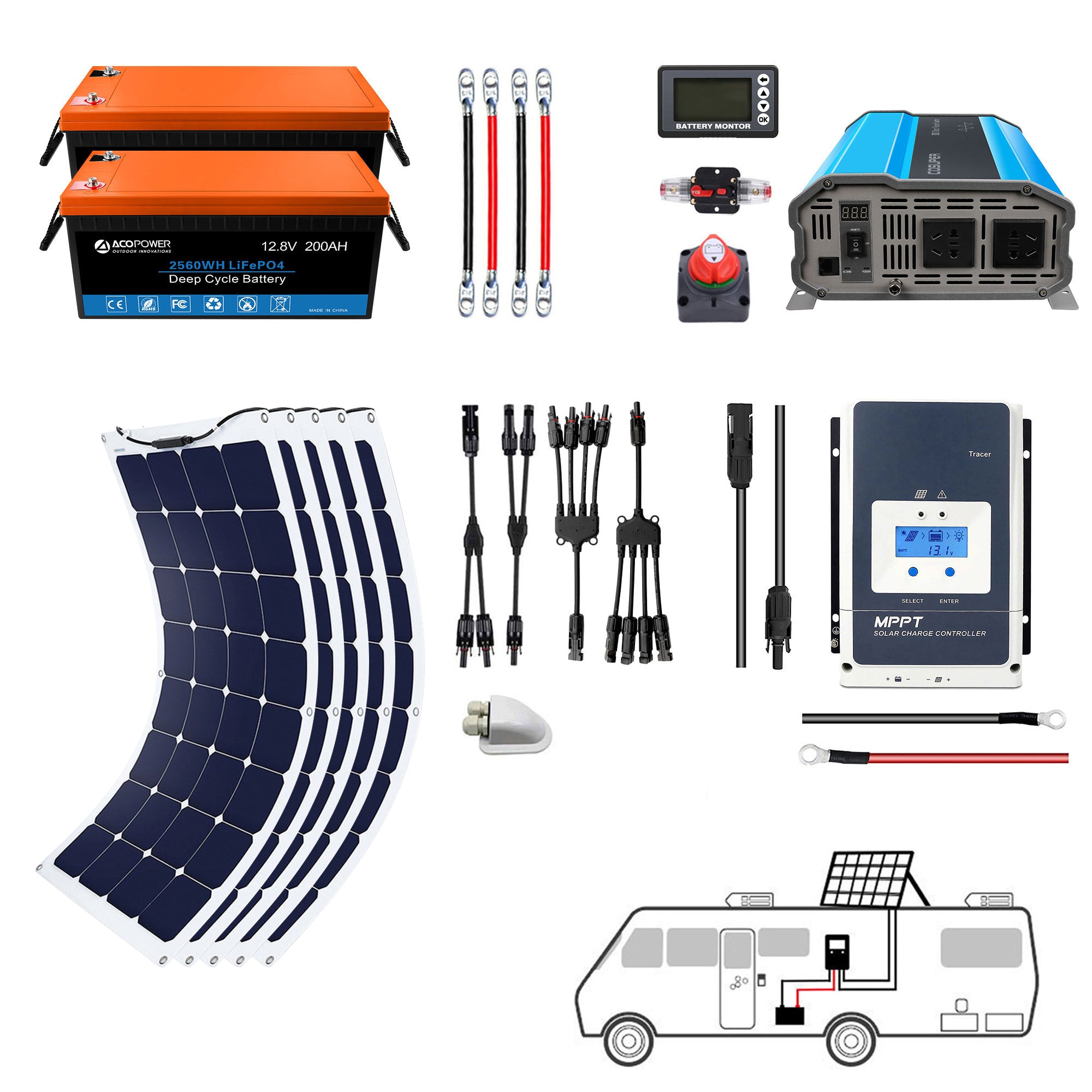

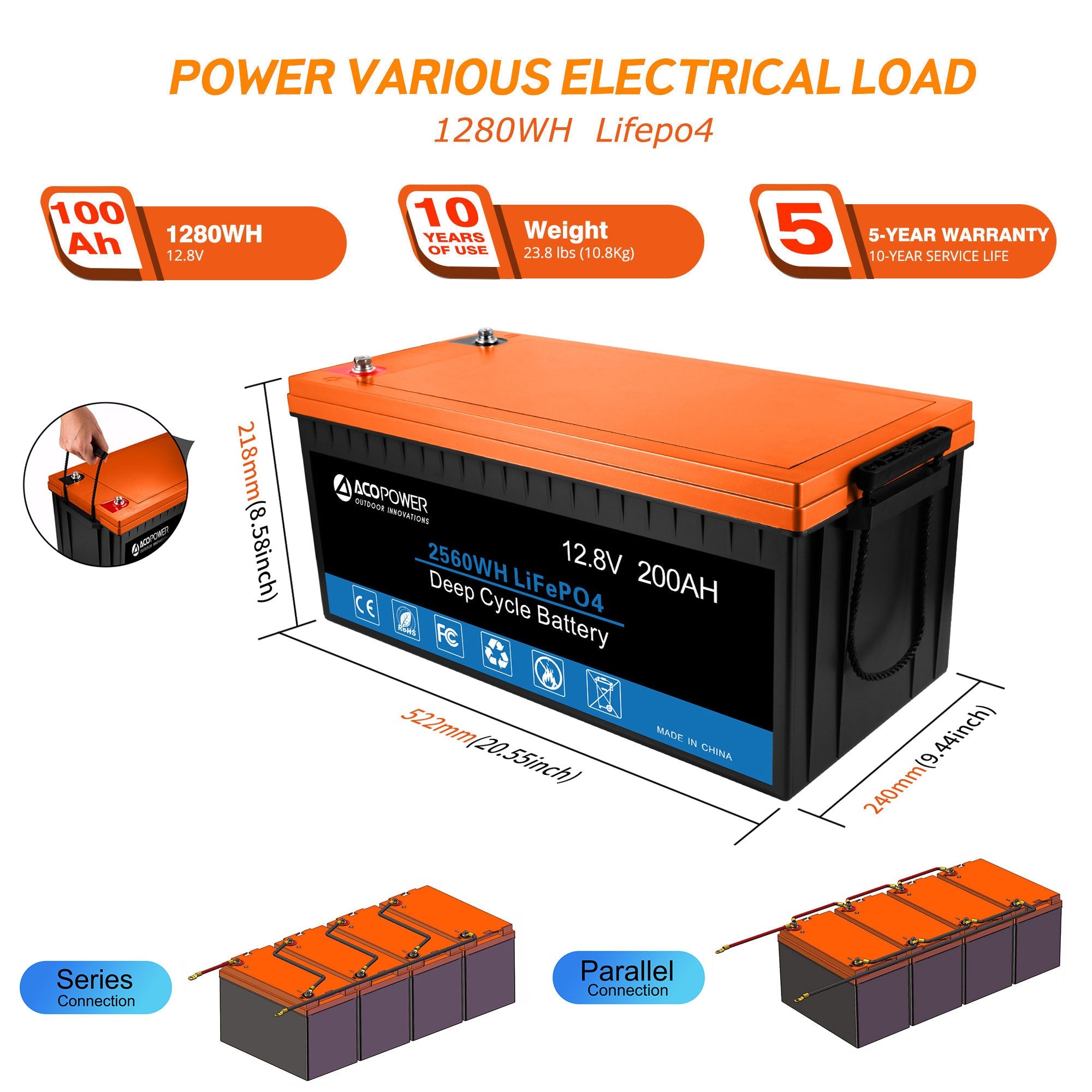

12V 200Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage 12.8V
Charge voltage: 14.2 - 14.6V
Battery Capacity:2560WH
Depth of Discharge (DoD): 100%
Standard charge current: 50A
Max continuous charge current: 100A
Max continuous discharge current: 200A
dimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch;
Approx. Weight: 48.94lb

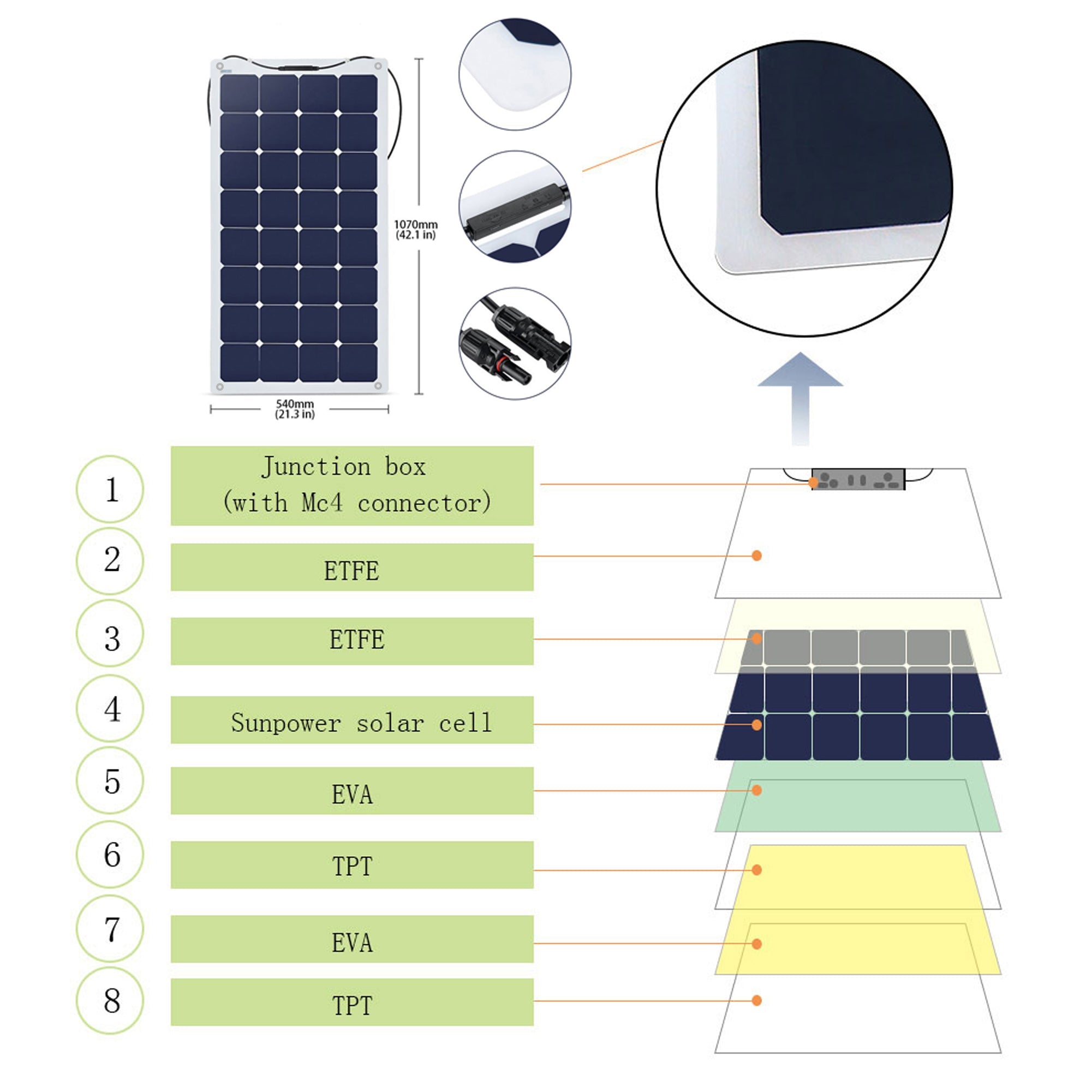

110W Semi-Flexible Solar Panel
Peak Power (Pmax):110W
Peak Circuit Voltage(Voc):20.8V
Max Power Voltage(Vmp):17.6V
Short Circuit Current(Isc):6.87A
Max Power Current(Imp):6.25A
Weight: 4.85 lb
Dimension: 44.68*21.26*0.12 Inch

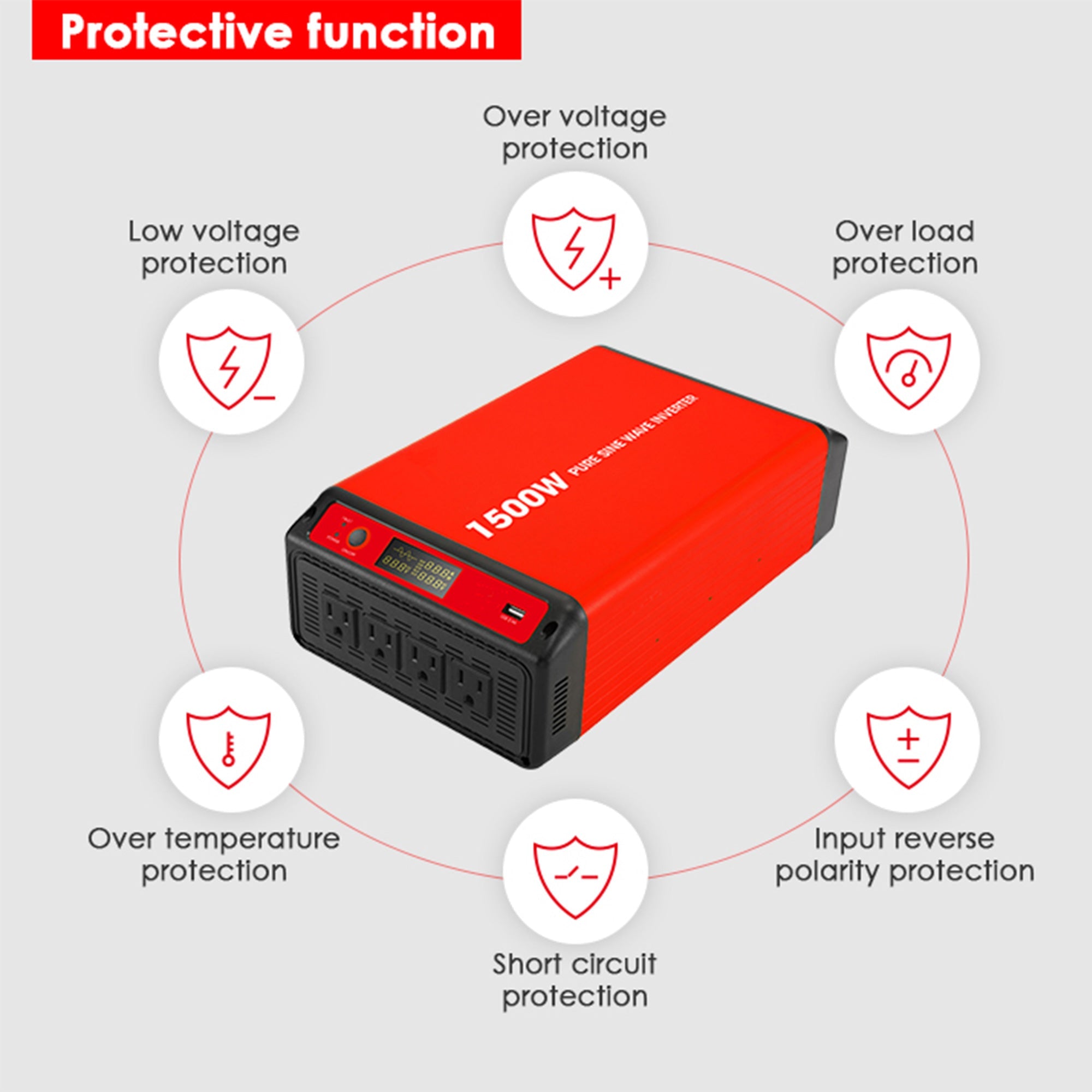

1500W Pure Sine Wave Inverter
Continuous output 1500W
Surge Power 3000W
Wave Form: Pure Sine Wave
Protection: Under voltage protection, Overvoltage protection, Overload
Protection, Output short circuit protection
Weight: 7.79lb
Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

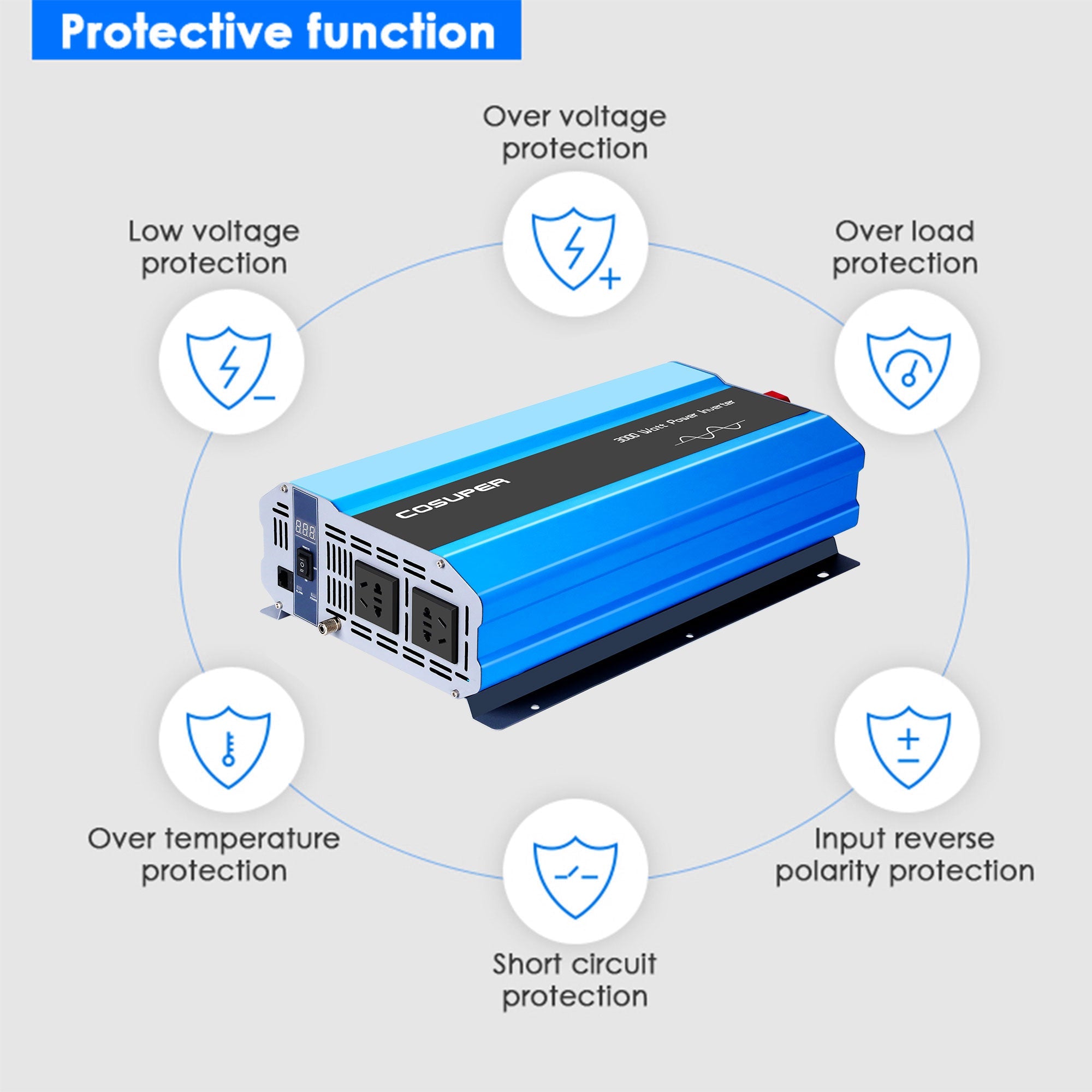

3000W Pure Sine Wave Inverter
Continuous output 3000W
Surge Power 6000W
Wave Form: Pure Sine Wave
Protection: Under voltage protection, Overvoltage protection, Overload
Protection, Output short circuit protection
Weight: 12.1lb
Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

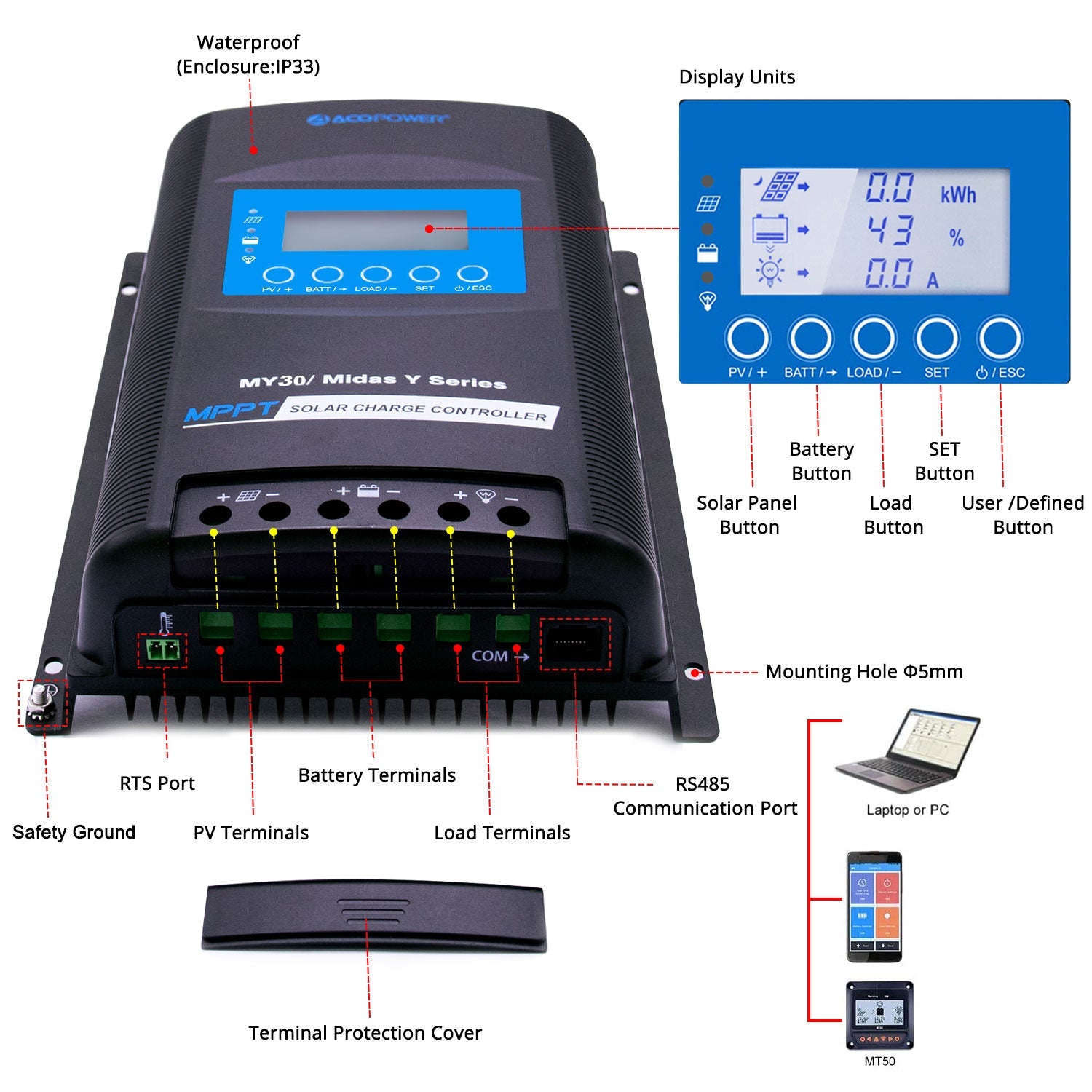

MPPT Solar Charge Controller 30A
Rated charge current: 30A
Battery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/390W,24V/780W
Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

MPPT Solar Charge Controller 40A
Rated charge current: 40A
Battery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/520W,24V/1040W
Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

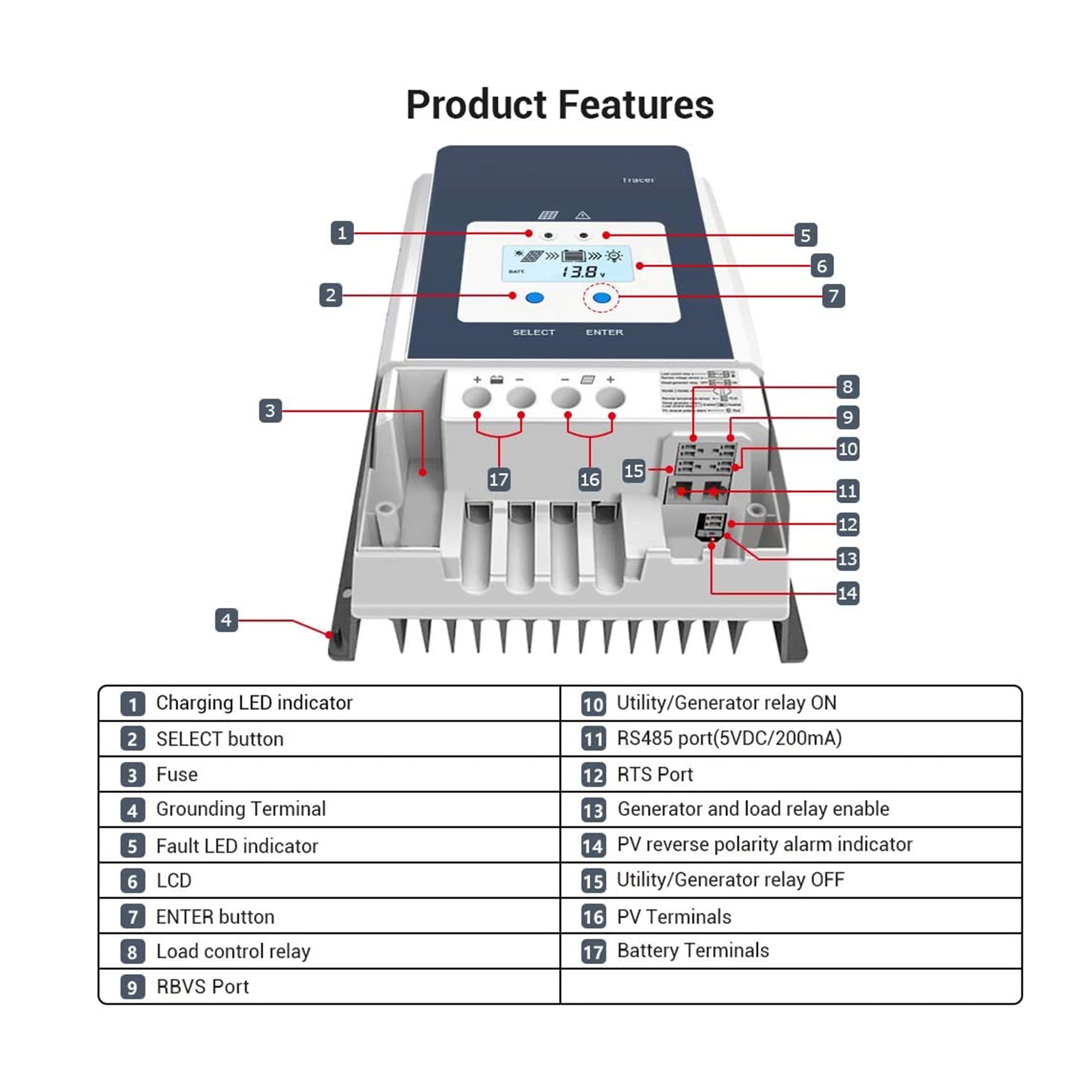

 MPPT Solar Charge Controller 50A

Rated charge current: 50A
Battery voltage range: 8V~68V
Max.PV open circuit voltage: 150V
Max.PV input power: 12V/625W,24V/1250W,36V/1875W,48V/2500W
Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries

MPPT Solar Charge Controller 60A
Rated charge current: 60A
Battery voltage range: 8V~68V
Max.PV open circuit voltage: 150V
Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
Compatible with Various Deep Cycle Battery options:Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
